Application/Product Range:
• For the manufacture of aluminum and annealed, bare or tinned copper ropes.
• Flexible ropes: …………………………….. 1,5 – 16 mm2.
• Concentric ropes: ……………………….. 1.5 – 16 mm2.
• Laying of insulated conductors: ….. up to 2-3-4 x 2.5 mm2.
Technical data
(we reserve the right to modify technical data and characteristics at any time):

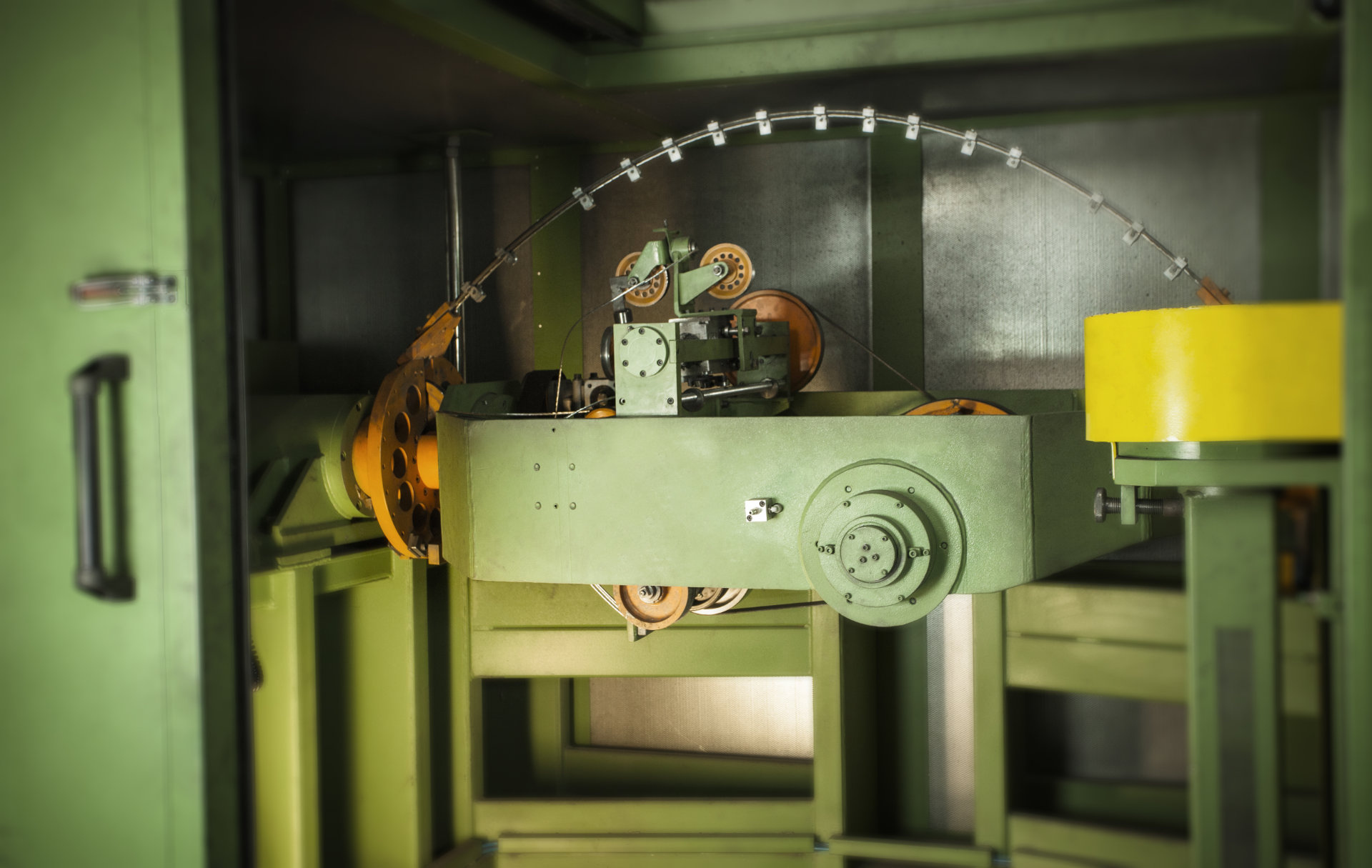

• Double Twist Buncher
• Traverse system: driven by a step motor, synchronized with coil speed.
• Reception coil fastened between pintles, with pneumatic closing.
• Mechanical clutch driven take up.
• Carbon fiber single bow design and hard metal wire guide.
• Pneumatically-operated disc brake.
• Electric Panel with controls and instrumentation integrated into the machine.
• Camera with image monitor installed in control panel, enabling supervision of traverse systems and receiving coil.
• Soundproof cabinet, with impact-resistant transparent polycarbonate display.
• Toothed transmission belts.
• Meter counter with programmable stop option.
• Coil loading and unloading with electric hoist (optional hydraulic lifting platform).
• Lay length adjusted by changing the pulley capstan diameter.
• Maximum operating speed (*): up to 200 m/min.
• Lay Range: …………………………. 30 – 250 mm.
• Max. number of Twists: ……… 3,000 Twists/min.
• Direction of lay: ………………….. S or Z.
• Coil Dimensions ∅ Max.: 800 mm.
∅ Core: 450 mm.
Maximum external width: 600 mm.
∅ hole for shaft: 127/200 mm.
Approx. max. copper rope capacity: 1,000 kg.
• Direction of operation: ……… Right.
• Operating voltage: ……………. 380V 60 Hz (Other to be confirmed).
(*) Maximum speed will vary according to the characteristics of the payoffs.
Supplementary equipment:
• Motorized payoffs.
• Wire welding machine.
• Equalizer and/or pretensioner for concentric ropes.
