Application/Product Range:
• For the manufacture of annealed, bare or tinned copper ropes.
• Flexible ropes: ……………………….. 0.75 – 10 mm2.
• Laying of insulated conductors: up to 2-3-4 x 1.5 mm2.
Technical data
(we reserve the right to modify technical data and characteristics at any time):

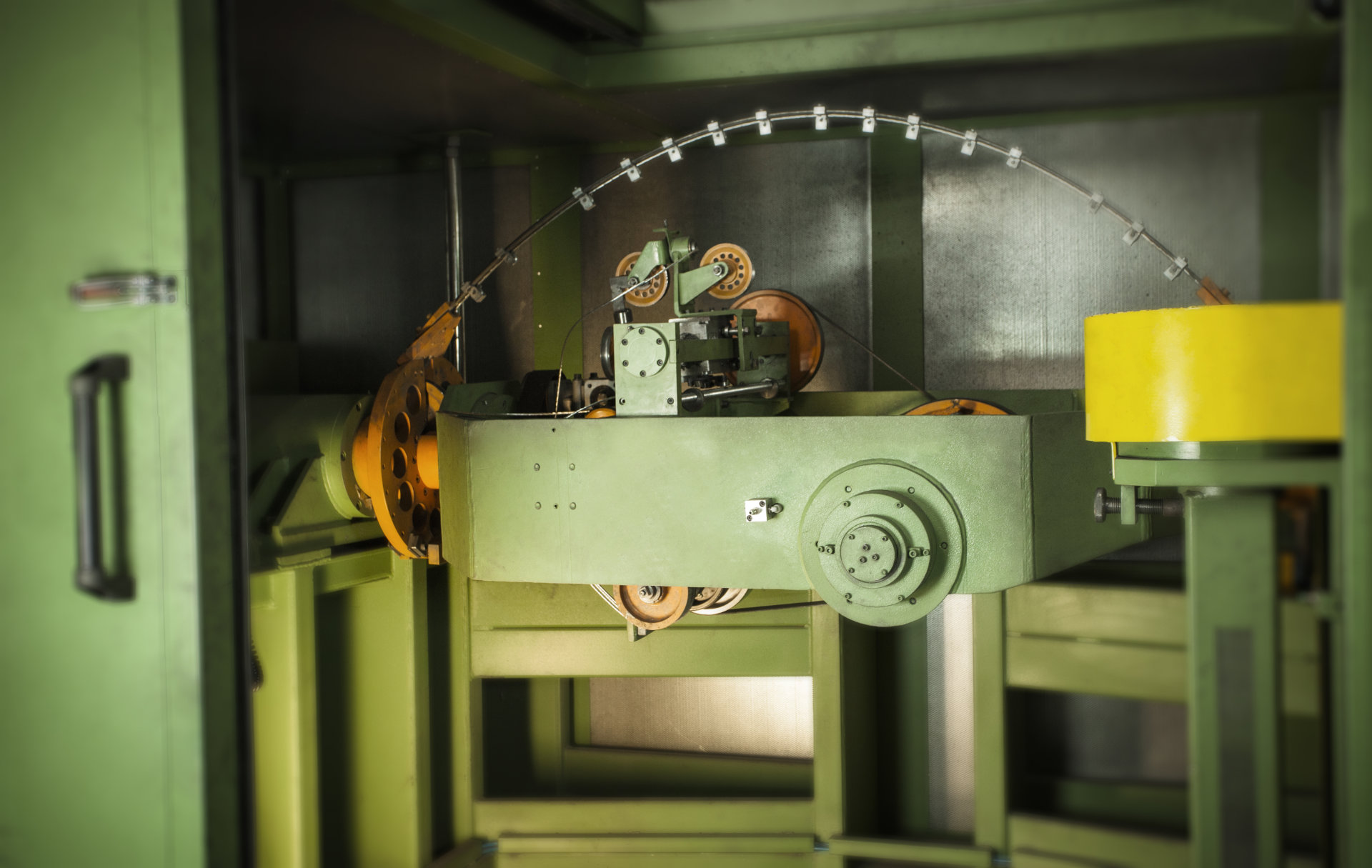

• Double Twist Buncher
• Electronic adjustment of lay length.
• Direct Shot take up (without pulling capstans).
• Traverse system: driven by a step motor, synchronized with the coil.
• Reception coil fastened between pintles, with pneumatic closing.
• Carbon fiber single bow design and hard metal wire guide.
• Pneumatically operated disc brake.
• Electric Panel with controls and instrumentation integrated into the machine.
• Camera and image monitor installed in control panel, enabling visual supervision of traverse system and receiving coil.
• Toothed transmission belts.
• Meter counter with programmable stop option.
• Soundproof cabinet, with impact-resistant transparent polycarbonate window.
• Coil loading and unloading with electric hoist (optional hydraulic lifting platform).
• Maximum operating speed (*): up to 200 m/min.
• Lay range: …………………………….. 20-250 mm.
• Max. number of Twists: ………… 2,000 Twists/min.
• Direction of lay: ……………………. S or Z.
• Coil Dimensions ∅ Max. Coil: 800 mm.
∅ Core: ……. 450 mm.
Maximum external width: 600 mm.
∅ hole for shaft: 127/200 mm.
Approx. max. copper rope capacity: 1.000 kg.
• Direction of operation: ………… Right.
• Operating voltage: ………………. 380V 60 Hz (Other to be confirmed).
(*) Maximum speed will vary according to the characteristics of the payoffs.
Supplementary equipment:
• Motorized payoffs.
• Wire welding machine.
• Equalizer and/or pretensioner for concentric ropes.
